【Blender科研绘图】案例3-C60

0 C60 建模

视频连接：https://www.bilibili.com/video/BV1Hh411Q793

blender 的视频建模在链接可以见，主要讲述建模的思路

1 建模过程

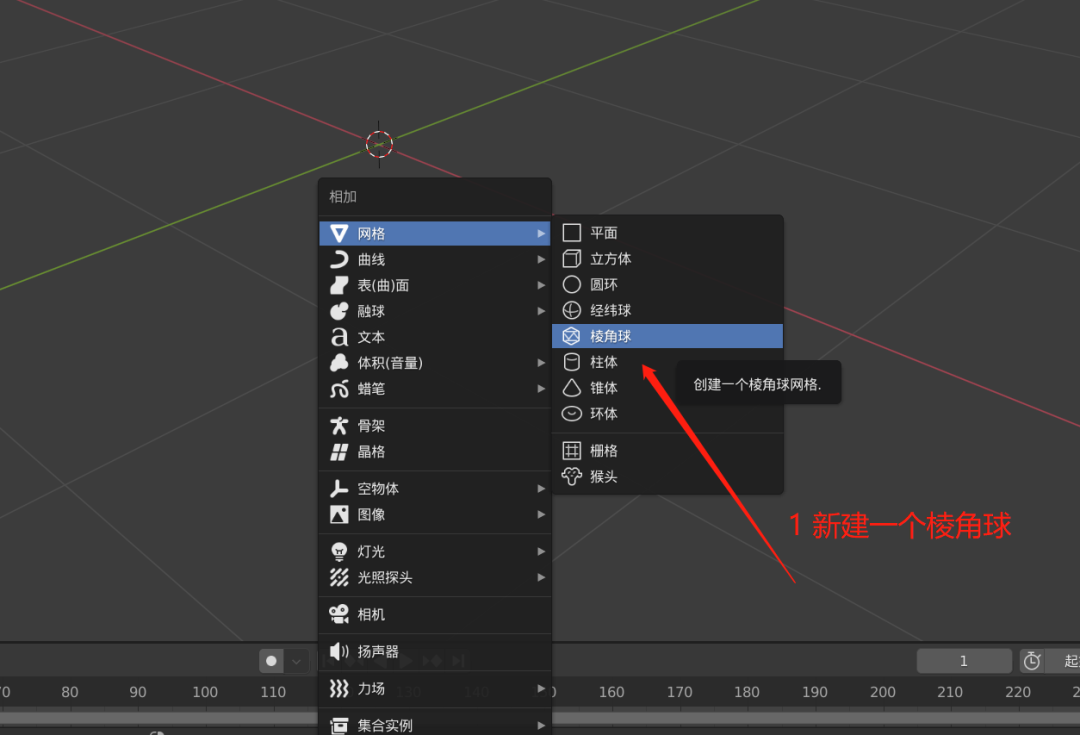

1 新建一个棱角球

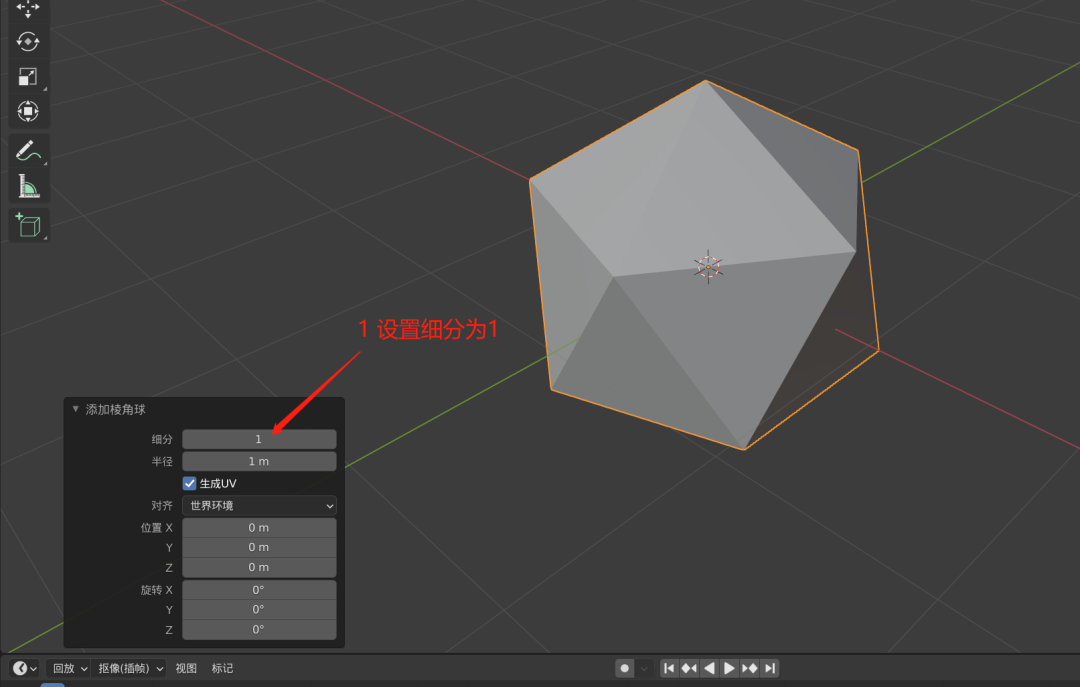

2 记住设置细分为 1

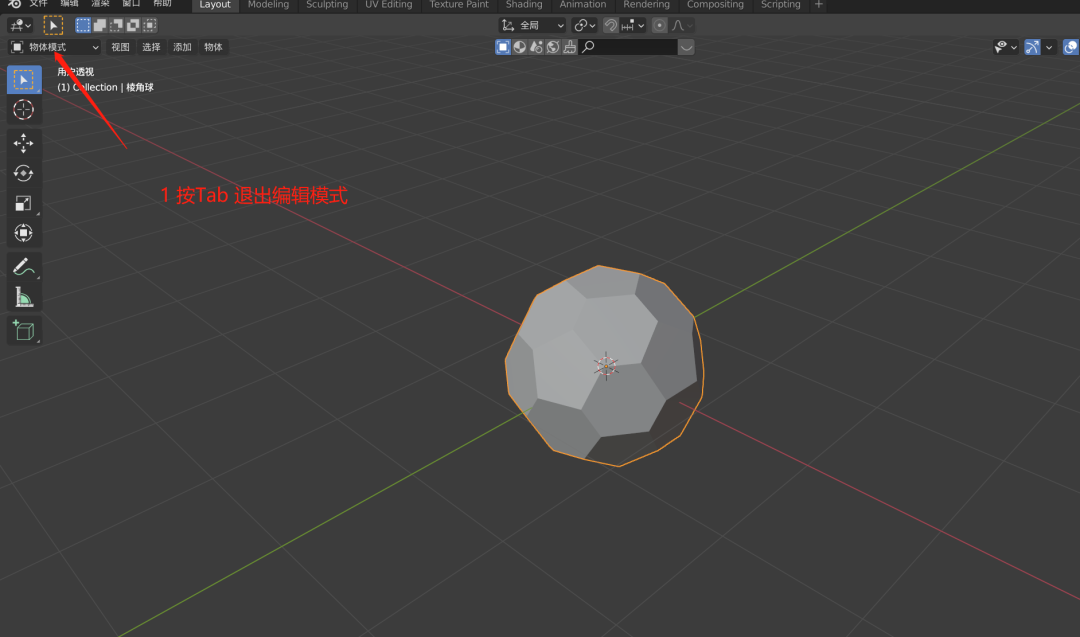

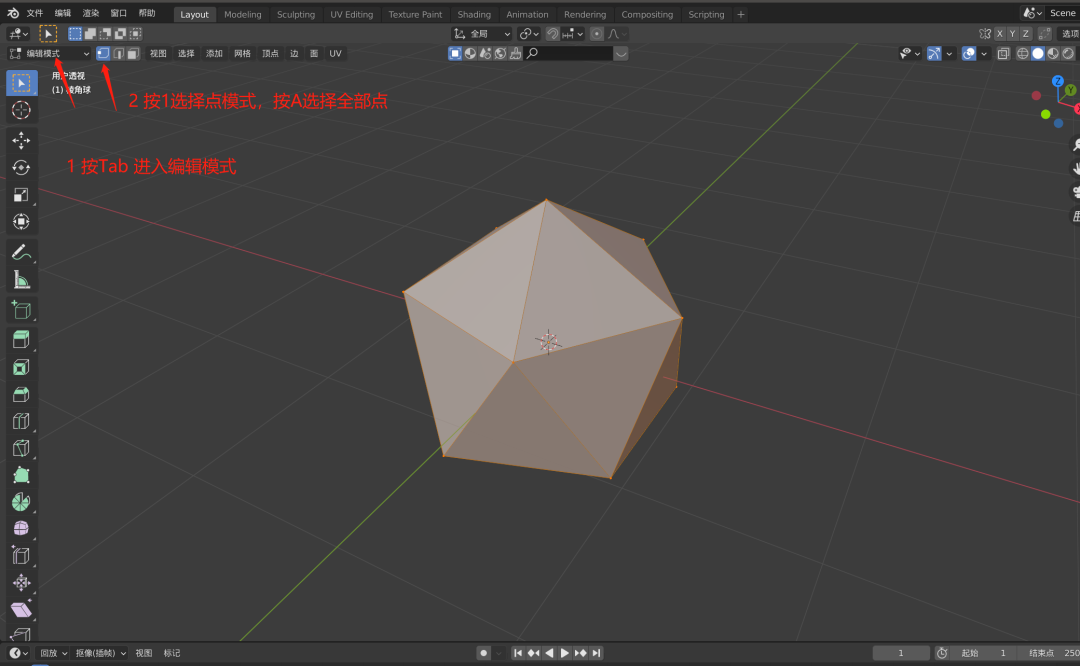

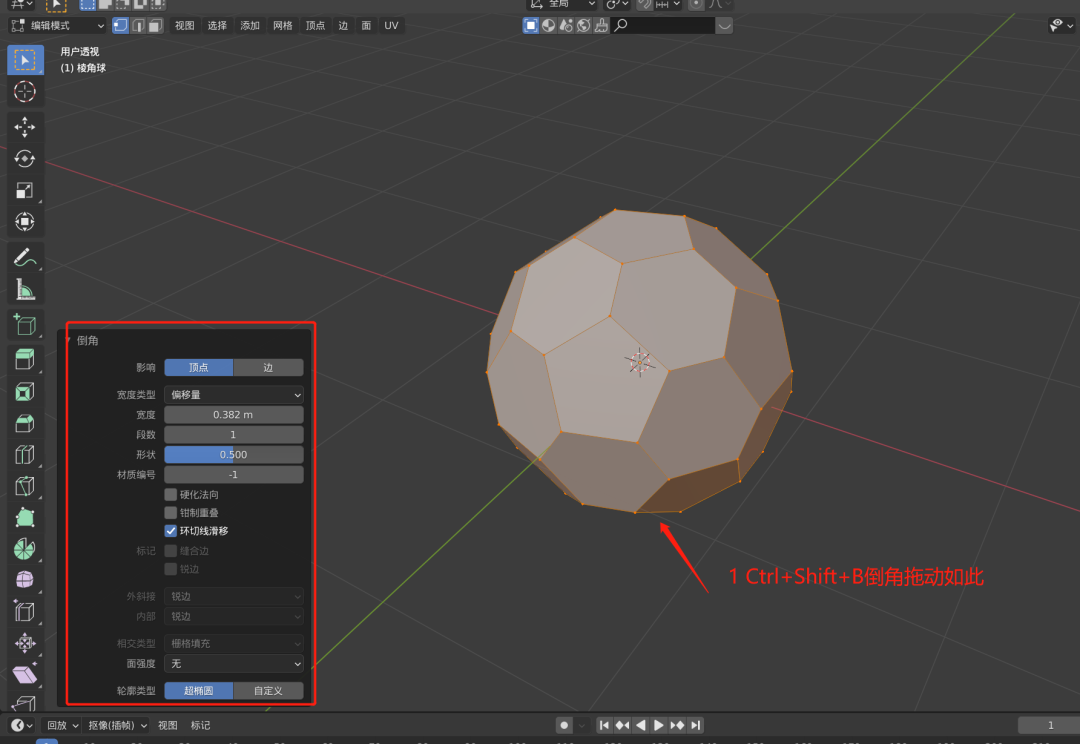

3 按住 Tab 进入编辑模式，或者在左侧进行点击

3 打上灯光添加材质渲染即可

Carbon 60 ([60] fullerene) is a non-metallic element with the chemical formula of C60. It is a molecule composed of 60 carbon atoms, similar to football, also known as football alkene. C60 is a stable molecule formed by the combination of carbon atoms. Its molecular weight is about 720.

C60 structure, also known as the baki ball, is also known as football alkene, because its shape is similar to that of English football. It is a stable molecule formed by the combination of 60 carbon atoms. British chemist Harold Walter croto outlined the molecular structure of C60, and fuller's inspiration played a key role. Therefore, they unanimously proposed to use Buckminster Fullerene (fullerene for short) and fullerene (fullerene in Chinese).

Adding a suffix ene after Fuller is to take into account that C60 molecule, like benzene and its derivatives, has aromatic structure and unsaturated property. In English, the naming of unsaturated compounds often has the suffix ene, so the name fullerene comes into being. In Chinese translation, compounds with the suffix ene are often translated into olefins, so the Chinese translation of fullerene is more accurate The name is fullerene.

C60 and its series of carbon clusters are called alkenes. According to the nomenclature principle of organic chemistry system, alkenes are hydrocarbons containing double bonds, while C60 and its series of carbon clusters are simple substances composed entirely of carbon atoms, not compounds or alkenes. Therefore, some chemists do not agree to use the name fullerene. The name fullerene is still used in books and literatures because it needs to respect the established custom.

Because the shape and structure of C60 molecule is similar to soccer, it is also known as soccer ene, which is translated as soccer ene in Chinese. Others use the prefix "buck" in Fuller's name, which is called"buckyball"and is translated as"buckyball" in Chinese.
